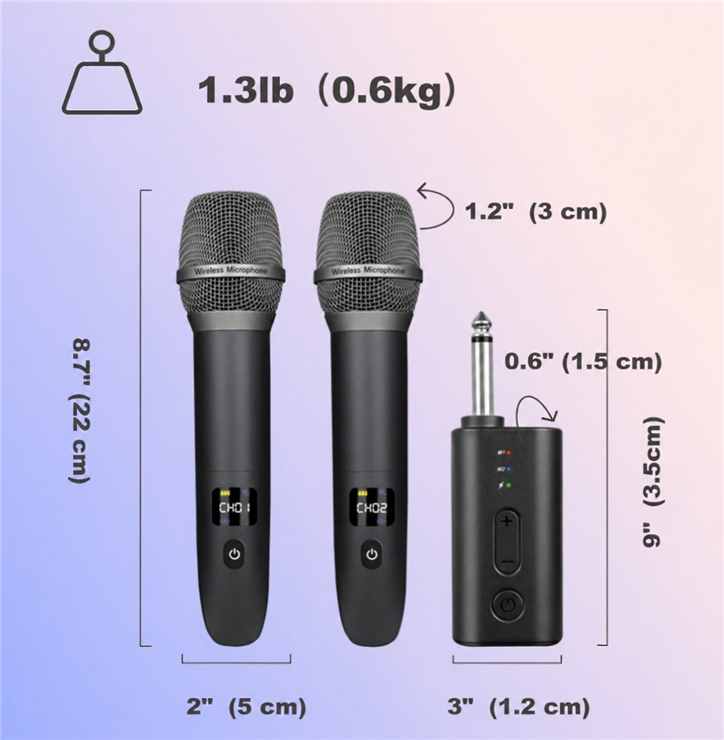

Microphone and receiver dimensions
Each microphone is approximately 220 mm long and 50 mm wide. The compact plug-in receiver uses a 6.35 mm output plug, and the set weighs approximately 600 g.
Guitar Accessories

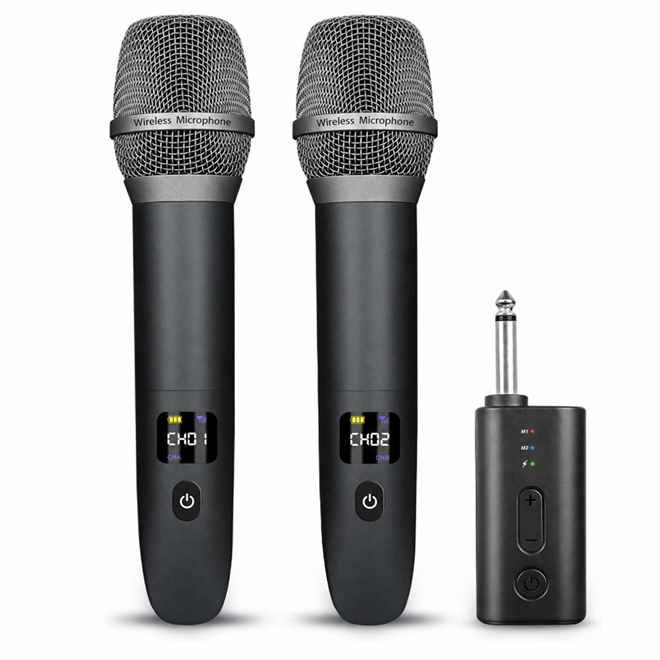

IM20
IM-20 rechargeable wireless microphone system with automatic pairing and plug-and-play operation.
- Model
- IM-20
- Wireless band
- 2.4GHz
- Transmission range
- 30–50 m without obstacles
- Frequency response
- 40 Hz–18 kHz
- Sampling rate
- 44.1 kHz
- Battery life
- Approximately 7 hours
- Charging
- USB Type-C
- Receiver output
- 6.35 mm (1/4 in)
- Compatible equipment
- Amplifier, audio mixer, karaoke machine, PA system and powered speaker
- Included
- 1 microphone, 1 receiver, USB charging cable, 6.35 mm audio cable and user manual
PRODUCT INFORMATION
IM-20 rechargeable 2.4GHz wireless microphone system for karaoke, speech, teaching, meetings and portable PA use.
Reliable wireless microphone setup
Stable 2.4GHz wireless transmission, automatic pairing and a rechargeable microphone-and-receiver design support simple plug-and-play use with compatible amplifiers, mixers, karaoke machines, PA systems and powered speakers.

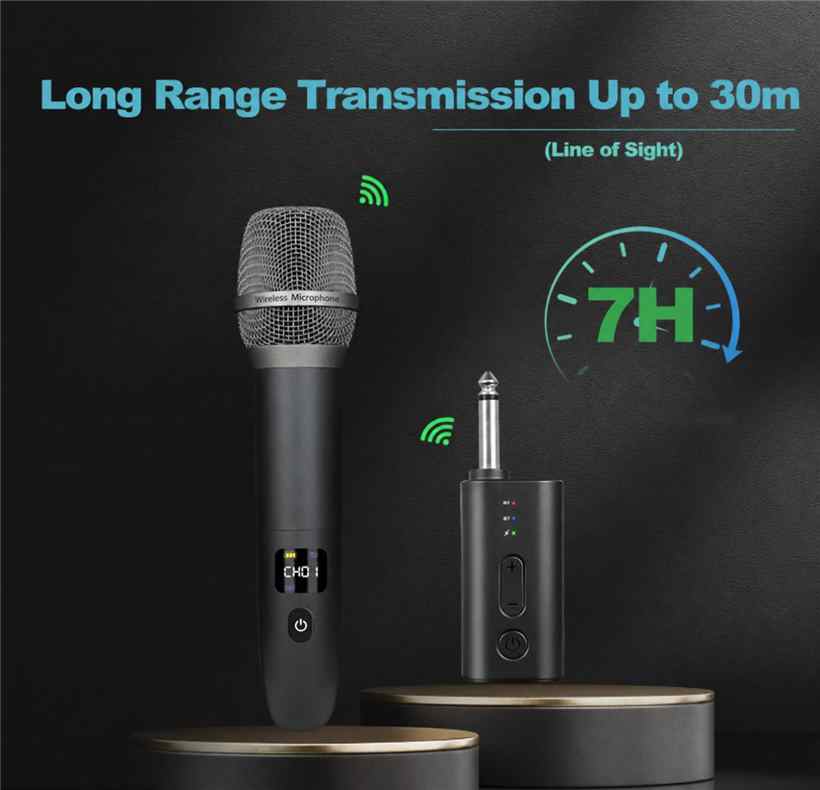

Up to 30 m line-of-sight range
The 2.4GHz wireless link supports up to approximately 30 m transmission in an unobstructed line-of-sight environment, with about seven hours of battery life.

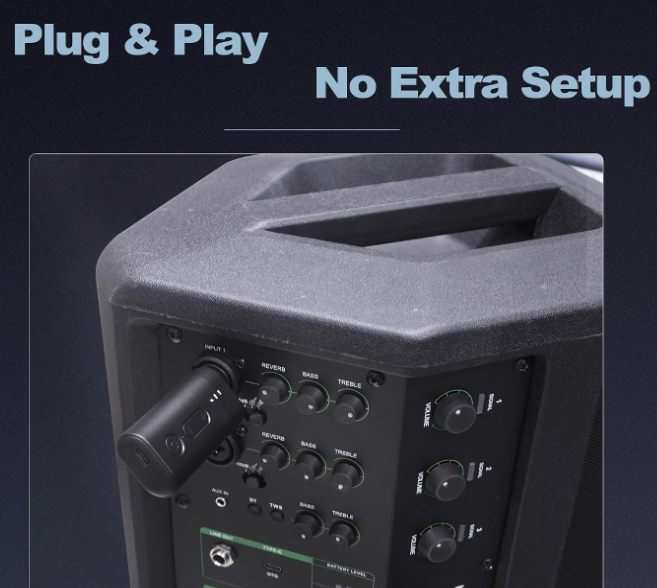

Plug-and-play receiver
Connect the receiver to a compatible 6.35 mm microphone input, power on the system and allow automatic pairing without additional setup.
